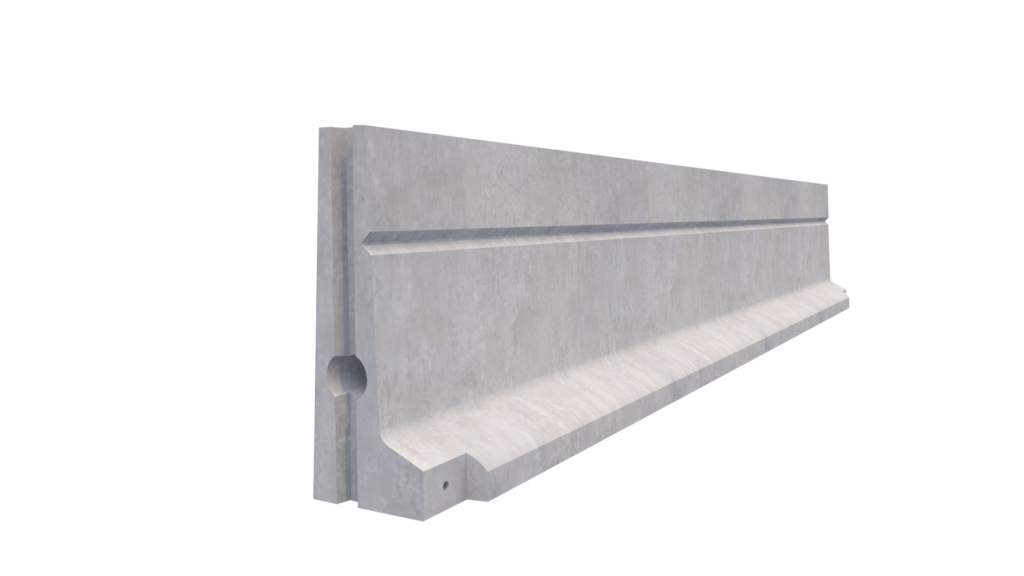

The ET100BLG road safety barrier with a redirective profile is CE-marked and certified in class H2, prefabricated using concrete with a C35/45 resistance class and reinforced with B450A and B450C steel.
This barrier is certified for the protection of sidewalls, both in tunnels and outdoors where specifically required, and is designed to accommodate appropriate illuminated signage.
| Concrete Properties | C35/45 |
|---|---|
| Steel | B450C |
| Top Connection | Hot-dip galvanized steel plate S235JR 280x80x10 mm bolted with galvanized cl. 8.8 M24x50 steel bolts. |
| Base Connection | Hot-dip galvanized steel plate S235JR 280x80x10 mm bolted with galvanized cl. 8.8 M24x50 steel bolts. |
| Special Elements | Terminal and transition elements. |
| Weight | Length/width/height | |
|---|---|---|
| Redirettivo ET100 | 3300 kg | 619/43/100 cm |
| Type | Redirective |
|---|---|
| System | ET100 |
| Element length | 6,19 m |
| Containment level | H2 |
| Working width | W1 |
| ASI | B |
| Dynamic deflection | 0,1 m |
| Vehicle intrusion | VI1 |
| System height | 100 cm |
| System width (base) | 43 cm |
| System width (top) | 15 cm |
| CE Marking | Yes |
